Galvanized Steel Defensive Barrier Wall 4mm Wire Mesh

  • 1
  • 2

Brand Name : KN

Model Number : KN-D05

Certification : ISO CE

Place of Origin : Hebei,China

MOQ : 10 pcs

Price : USD 13.88-USD 29.98

Payment Terms : T/T,Western Union,L/C

Supply Ability : 10000 pcs/month

Delivery Time : 7-15 days

Packaging Details : Wooden pallets

Spring Wire Diameter : 3.0MM, 4.0mm

Features : Strong, Anti-Rust

Packing : pallet or carton

Durability : Highly durable and long-lasting

Material : High-strength composite materials

Mesh Diameter : 4.0mm Diameter Wire

Advantage : Easy Assembled

Panel Size : 0.61m x0.61m, also can be customized

Key Words : Defensive barrier bastion

Weight : Lightweight and easy to carry

Accesssories : geotextile

Wire Diameter : 4mm,5mm

Spring Diameter : 4.0mm

Hole Size : 76.2X76.2mm

Contact Now

Army Defensive Barrier Wall Supplier 5.0mm 20m Defense Bastion Flood Barrier Defensive Barrier Boxes
Product Specifications
Attribute Value
Spring Wire Diameter 3.0MM, 4.0mm
Features Strong, Anti-Rust
Packing pallet or carton
Durability Highly durable and long-lasting
Material High-strength composite materials
Mesh Diameter 4.0mm Diameter Wire
Advantage Easy Assembled
Panel Size 0.61m x 0.61m, also can be customized
Weight Lightweight and easy to carry
Accessories geotextile
Wire Diameter 4mm,5mm
Spring Diameter 4.0mm
Hole Size 76.2X76.2mm
Product Description

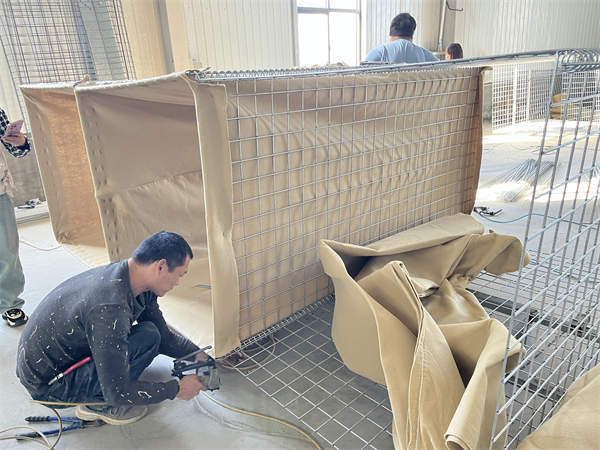

Defense Barrier/Blast Wall/Welded Gabion

Also known as Rock basket retaining wall, defensive barrier, flood control barrier, etc. Made of steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, or stone to serve as a defense wall or bunker. Widely used in special circumstances for safety protection.

Key Features
  • Pre-fabricated gabion of galvanized welded mesh steel with UV-protecting polypropylene geotextile liner
  • Filled with easy-to-obtain mix of sand and small stones
  • Can be connected to any length and stacked for additional height
Applications
  • Landscaping: retaining walls, urban landscape and parks
  • High salt pollution environments where welded wire mesh technology is required
  • Highway protection: slope, roadway, bridge protection
  • Earth or soil reinforcement: desertification control, slope protection, river and coastal protection
  • Reservoirs, canals, pipelines renovation, rock failure protection
Galvanized Steel Defensive Barrier Wall 4mm Wire Mesh
Product Models & Specifications
We supply customized any sizes you need!
MODEL HEIGHT WIDTH LENGTH WEIGHT No. of CELLS
KN 1 4'6"(1.37m) 3'6"(1.06m) 32'9"(10m) 149(kg) 9 (1*4+1*5cells)
KN 2 2'(0.61m) 2'(0.61m) 4'(1.22m) 10(kg) 2 (1*2 Cells)
KN 3 3'3"(1.00m) 3'3"(1.00m) 32'9"(10m) 113(kg) 10 (2*5 Cells)
KN 4 3'3"(1.00m) 5'(1.52m) 32'9"(10m) 155(kg) 10 (2*5 Cells)
KN 5 2'(0.61m) 2'(0.61m) 10'(3.05m) 22(kg) 5 (1*5 Cells)
KN 6 5'6"(1.68m) 2'(0.61m) 10'(3.05m) 66(kg) 5 (1*5 Cells)
KN 7 73"(2.21m) 7"(2.13m) 91'(27.74m) 936(kg) 13 (2*4+1*5cells)
KN 8 4'6"(1.37m) 4'(1.22m) 32'9"(10m) 153(kg) 9 (1*4+1*5cells)
KN 9 3'3"(1.00m) 2'6"(0.76m) 30'(9.14m) 101(kg) 12 (2*6cells)
KN 10 7'3"(2.21m) 5(1.52m) 100'(30.50m) 1040(kg) 20 (4*5cells)
KN 12 84"(2.13m) 42"(1.06m) 108(33m) 813(kg) 30 (6*5cells)
KN 19 108"(2.74m) 42"(1.06m) 10'5"(3.18m) 198(kg) 6 (1*6cells)
Galvanized Steel Defensive Barrier Wall 4mm Wire Mesh Galvanized Steel Defensive Barrier Wall 4mm Wire Mesh
Product Advantages
Collapsible

Assembled by Panel and Spring Wire. Foldable into one piece for loading and transportation.

Anti-Corrosion

Made from Hot Dipped Galvanized Wire for durability, lasting 10+ years in outdoor conditions.

Easy Installation

Simply place in position, open, and fill with sand/earth. Can be completed by 2-3 persons.

Quick Displacements

Easily relocated and reused multiple times in different locations.

Easy to Repair

Damaged sections can be replaced by connecting new components.
