High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing

Product Categories
Hebei KN Wire Mesh Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

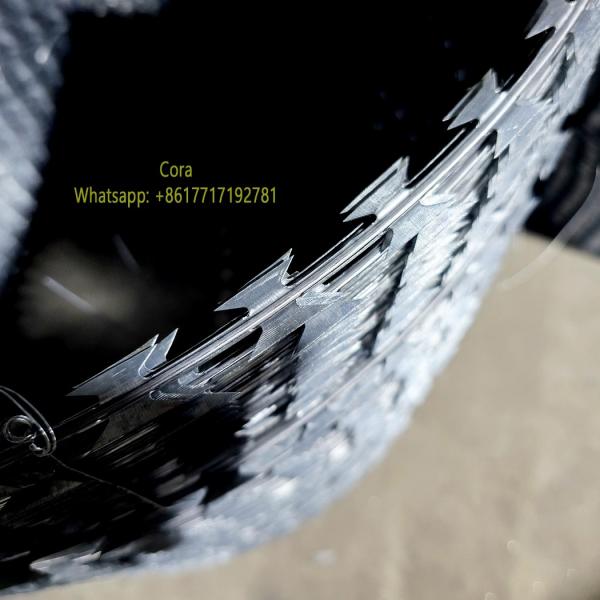

High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing

  • 1
  • 2

Brand Name : KN

Model Number : BTO-22, CBT-60, CBT-65

Certification : ISO, PVOC,SASO,FORM A, FORM E,CO

Place of Origin : HB

MOQ : 28 Tons

Price : USD 80~150/SET

Payment Terms : T/T,Western Union,MoneyGram,Trade Assurance

Supply Ability : 28T per day

Delivery Time : 7 Working Days

Packaging Details : Wooden Box and Wooden Pallet

Material : Stainless Steel Sheet, HDP Galvanized Sheet

Surface Treatment : Hot Dipped Galvanized, Stainless Stell

Using Life : About 10 years

application : lawn railways expressways farm prison etc

Razor Type : Single Razor

sample : free

Type : BTO-22, BTO-16, BTO-18, CBT-65, CBT-30

Package : wooden pallet, water proof paper

Contact Now

High Density Flat Type Hot Dipped Galvanized BTO-22 Type Concertina Razor Barbed Wire Mesh Fences
High Density Flat Type Hot Dipped Galvanized BTO-22 Type Concertina Razor Barbed Wire Mesh Fences provide superior security with sharp, angular blades (0.1mm tip sharpness) that create an effective physical barrier against intrusion. This design eliminates risks of forced climbing or cutting common with conventional barbed wire.
Key Advantages
  • Enhanced Security: Multi-dimensional protection with sharp blades that deter unauthorized access
  • Quick Installation: Supports tool-free splicing and modular assembly, reducing deployment time by 30%
  • Exceptional Durability: Hot-dipped galvanized coating (≥85μm zinc layer) resists UV, humidity, chemicals, and extreme temperatures (-40℃ to 80℃)
  • Long-term Performance: Maintains structural integrity in demanding environments including military, border, and industrial applications
High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing
Razor wire features a central high-tensile strength wire with steel tape punched into barbed shapes, cold-crimped tightly to the wire. Flat barbed tape is similar but lacks central reinforcement.
Product Specifications
Reference Number Thickness (mm) Wire Dia (mm) Bard Length (mm) Bard Width (mm) Bard Distance (mm)
BTO-100.5±0.052.5±0.0510±113±16±1
BTO-120.5±0.052.5±0.0512±115±126±1
BTO-160.5±0.052.5-2.816±119±130±1
BTO-180.5±0.052.5±0.0518±115±133±1
BTO-220.5±0.052.5±0.0522±115±134±1
BTO-280.5±0.052.5±0.0528±115±153+1
BTO-300.5±0.052.5±0.0530±121±154±1
CBT-600.5±0.052.5±0.0560±132±1100±1
CBT-650.5±0.052.5±0.0565±121±1100±2
Razor Barbed Wire Coil and Unit Loops
Outside Diameter No.of Loops Standard Length Per Coil Type Notes
450mm338MCBT-65Single coil
500mm4110MCBT-65Single coil
700mm4110MCBT-65Single coil
960mm5313MCBT-65Single coil
500mm10216MBTO-10.15.22Cross type
600mm8614MBTO-10.15.22Cross type
700mm7212MBTO-10.15.22Cross type
800mm6410MBTO-10.15.22Cross type
960mm529MBTO-10.15.22Cross type
110cm10020 MBTO-16,22Cross type

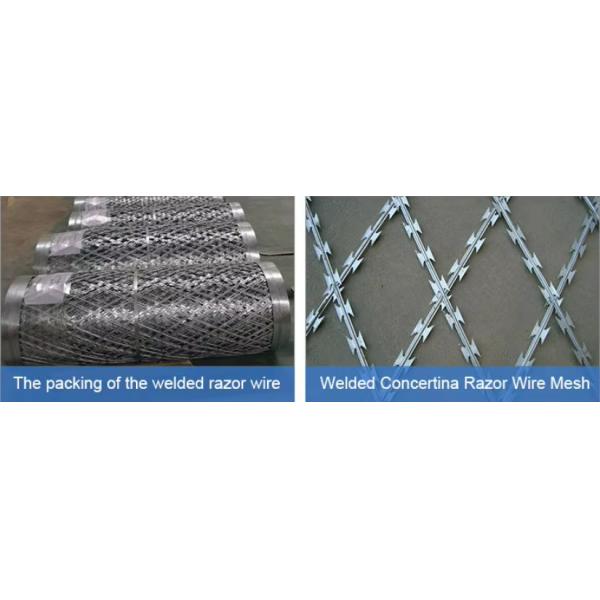

Manufacturing & Packaging
High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing
Our No.3 workshop produces BTO-16 razor wire, packed in wooden boxes with a daily output of 1/40HQ.
Packing Options
  • Sheets packed by pallet or strapped into bundles
  • Sheets in cartons or wooden cases
  • Rolls in water-proof paper + plastic film
High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing
Product Details
High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing High Density Flat Type Single Razor Concertina Razor Wire for Secure Fencing
