Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire

Product Categories
Hebei KN Wire Mesh Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire

  • 1
  • 2

Brand Name : KN

Model Number : BTO-22, CBT-60, CBT-65, BTO-16, CBT-30

Certification : ISO, PVOC,SASO,FORM A, FORM E,CO

Place of Origin : HB

MOQ : 28 Tons

Price : Negotiated

Payment Terms : T/T,Western Union,MoneyGram,Trade Assurance

Supply Ability : 28T per day

Delivery Time : 7 Working Days

Packaging Details : Waterproof Paper + woven cloth

Material : Steel Wire, HDP Galvanized Sheet

Surface Treatment : Hot Dipped Galvanized, Stainless Stell

Using Life : above 10 years

application : Border Protection Fence, Prision Fence

Razor Type : Single Razor, Cross Type, Flat Type

sample : free

Type : BTO-22, BTO-16, BTO-18, CBT-65, CBT-30

Package : wooden pallet, water proof paper

Outer Diameter : 45-110mm

Stock : 8 containers

Contact Now

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire

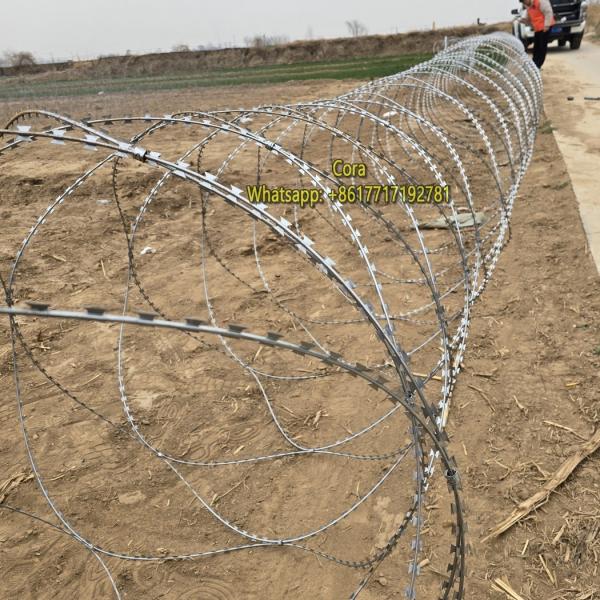

Made From Steel Wire which is 2.5 - 2.8mm Covered Hot Dipped Galvanied Metal Plate, outside had sharp barb, this is the shap of Razo Wire Barbed Wire, which mainly used for protection, such as Residential area, Prison, Airport Fence, now also large quantity used for military, especially now internation situation is not good, this kind of razor wire can help to protect country border well.

<img alt="" src="

Core Advantages: Temporary, Recyclable & Easy-Install

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire
  • Rapid Easy Installation for Temporary Needs: Adopting a modular cross-type blade structure paired with lightweight galvanized steel brackets, the fence requires no complex welding or concrete foundation. A 2-person team can complete the setup of a 10-meter section in just 30 minutes—equipped with pre-drilled holes and quick-connect fasteners, it can be assembled directly on flat ground, gravel, or grassland. The flexible connection design allows on-site adjustment of fence length and height (customizable from 1.2m to 2.5m) to adapt to irregular borders or factory compound contours, significantly reducing deployment time for emergency security scenarios.
  • 100% Recyclable & Cost-Saving: Constructed from high-purity low-carbon steel (recyclable rate ≥95%), the entire fence—including cross-type razor blades, brackets, and support poles—can be fully disassembled and recycled after use, avoiding waste of resources and reducing environmental impact. Compared with disposable temporary barriers, it can be reused 5-8 times under normal maintenance, lowering long-term security costs for projects with repeated temporary security demands (such as infrastructure construction, large-scale events, or temporary border checkpoints).
  • Hot-Dipped Galvanization for Durable Protection: Every component of the fence undergoes a strict hot-dip galvanization process (zinc coating thickness 60-100μm, compliant with EN ISO 1461 standard), forming a dense zinc layer that effectively resists rust, corrosion, and chemical erosion from industrial pollutants. Even in harsh environments such as coastal salt spray, industrial workshops with high humidity, or cold border regions with frequent freezing and thawing, it maintains structural integrity without paint peeling, ensuring a service life of up to 15 years for semi-permanent use and stable performance during repeated temporary deployments.

Specification:

Reference Number

Thickness

(mm)

Wire Dia

(mm)

Bard Length

(mm)

Bard Width

(mm)

Bard Distance

(mm)
BTO-10 0.5±0.05 2.5±0.05 10±1 13± 16±1
BTO-12 0.5±0.05 2.5±0.05 12±1 15±1 26±1
BTO-16 0.5±0.05 2.5-2.8 16±1 19±1 30±1
BTO-18 0.5±0.05 2.5±0.05 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.05 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5±0.05 28±1 15±1 53+1
BTO-30 0.5±0.05 2.5±0.05 30±1 21±1 54±1
CBT-60 0.5±0.05 2.5±0.05 60±1 32±1 100±1
CBT-65 0.5±0.05 2.5±0.05 65±1 21±1 100±2

Razor Barbed Wire Coil and Unit Loops

Outside Diameter No.of Loops Standard Length Per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type

Types of Razor Wire:
Razor Wire Fence
Concertina Razor Coils
Razor Wire Flat Wrap Coils
Welded Razor Wire
Razor Ribbon
Razor Wire Mobile Security Barrier
Galvanized Razor Wire
Straight Line Razor Wire Fence
Stainless Steel Razor Wire
Razor Wire Concertina
Double Concertina Razor Wire

Details of Razor Wire:

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire

Workshop:

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire

Above is our No.3 workshop, producing BTO-16, Packed with wooden box. daily output is 1/40HQ.

Packing & Delivery:

1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire

Razor Wire and Perimeter Security:
Detection at the perimeter enables security personnel to quickly assess and respond to security events while intruders remain delayed or caught up in the razor wire. Any attempt to cut, bypass or disturb the razor wire is immediately detected.

Country Border Protection Fence Galvanized BTO 22 Razor Barbed Wire
